Energy Saving Technology for MBR

Energy Saving Technology for Membrane

No 1
A technology that can only be implemented
can only be implemented by the membrane
by the membrane with the world’s highest level of peel-off strength
Only 1
This technology can break this formulation
“MBR = Blower = High CAPEX”

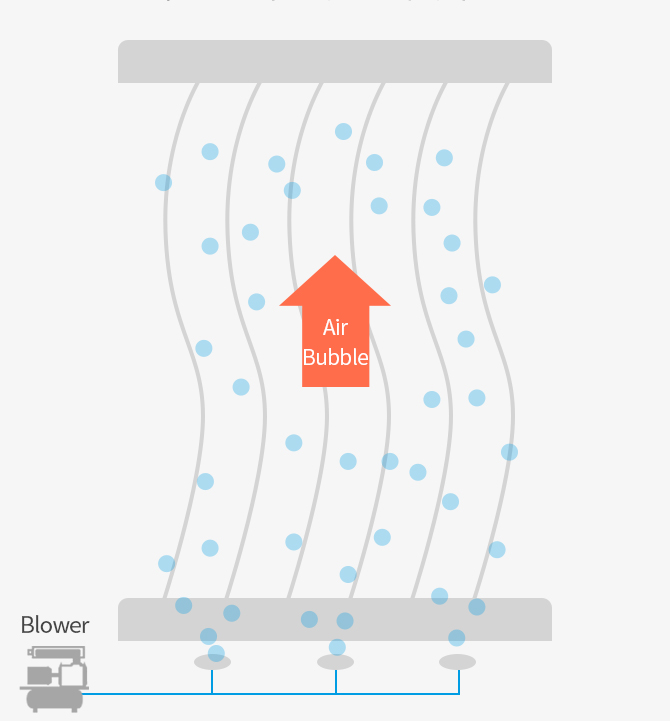

Conventional MBR
High possibility of sludge accumulation between fibers in case of air imbalance
Air scouring
Actual field operations

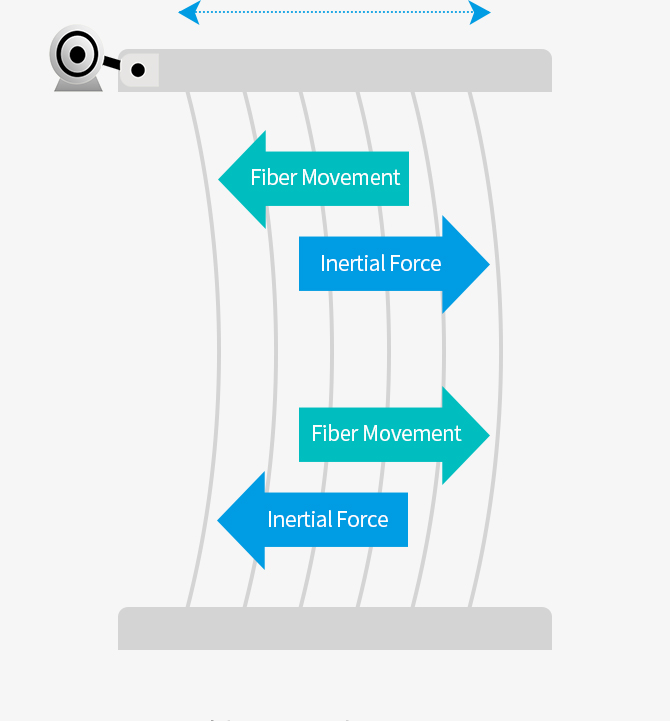

Reciprocating Movement
Reciprocating movement in low speed and horizontal
  • 130 ~ 80%Energy Saving
  • 2Excellent cleaningefficiencyfor whole cassette
  • 3Increase membranelife and reducerecovery cleaning cycle

Operational Data

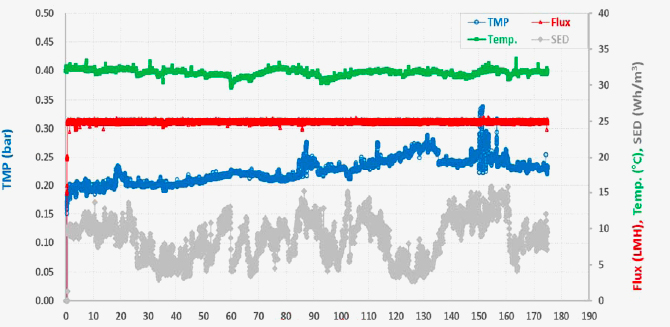

Site #1
  • Energy consumption : 0.005 ~ 0.01kWh/m³
  • Operation MLSS : 8,000 ~ 13,000mg/L

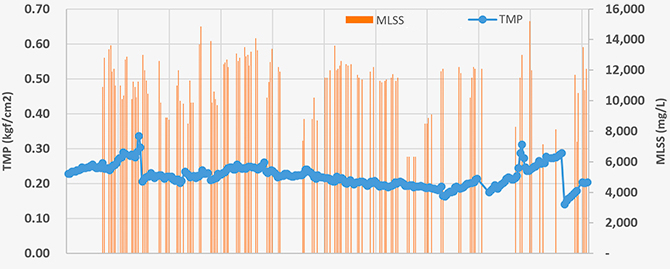

Site #2
  • Energy consumption : 0.040 ~ 0.047kWh/m³
  • Operation MLSS : 10,000 ~ 15,000mg/L

Cleaning Effectiveness

Our cassette was not added any aeration diffuser or pipe, thus preventing unbalance for air bubble and plugging.

[After 6months later]

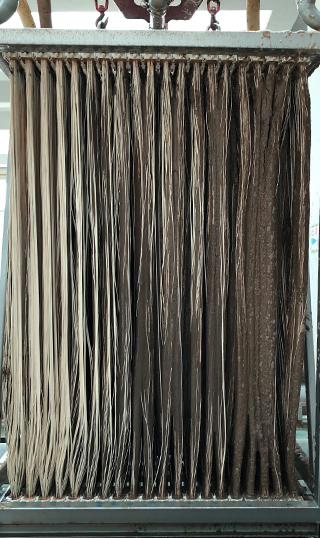

  • Conventional MBR
    Our Technology

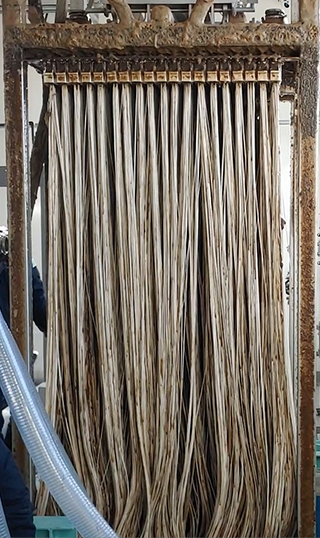

  • Our Technology
  • Membrane condition after 9months later
  • Aerial footage at sewage recycle plant
